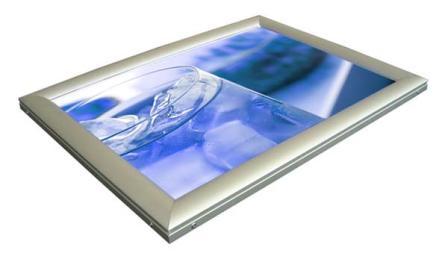

BriteLite XS/XD
An elegant, Slim light box, single or double sided.....

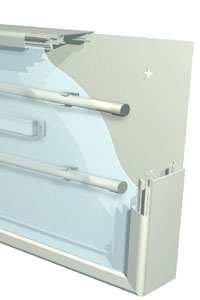

- Ultra Slim light boxes use proven edge lit light technology making them incredibly bright and stylish
- Single or double sided
- Specialist in bespoke sizes
- Long lamp life— up to 20’000 hours (approx. 2 years)
- Lux level at panel centre of A1 unit is 2600, making it one of the brightest units around
- Supplied with a 3-pin plug
- Stylish, slim click frame, from 49mm wide x 35mm deep
- Use wall mounted or suspended
Our BriteLite Displays compliment your existing systems, allowing you to highlight that important message. Our units also offer easy, speedy updates of images so that your messages can be changed within minutes.
BriteLite XS/XD light boxes - techinical information
Sizing
BriteLite Signage offers a standard range of sizes from A3 to A0 or you can have something uniquely yours to suit your own graphic requirements.
| Single sided light boxes— silver anodised finish | ||||
| Item Code | Size | OA Size (mm) | Poster Size (mm) | Visible Size (mm) |
| BLXSA4 | A4 | 379x292 | 297x210 | 277x190 |
| BLXSA3 | A3 | 502x379 | 420x297 | 400x277 |
| BLXSA2 | A2 | 676x502 | 594x420 | 574x400 |
| BLXSA1 | A1 | 939x692 | 841x594 | 821x574 |
| BLXSA0 | A0 | 1287x939 | 1189x841 | 1169x821 |
| Double sided light boxes – silver anodised finish | ||||
| Item Code | Size | OA Size (mm) | Poster Size (mm) | Visible Size (mm) |
| BLXDA3 | A3 | 502x379 | 420x297 | 400x277 |
| BLXDA2 | A2 | 676x502 | 594x420 | 574x400 |
| BLXDA1 | A1 | 939x692 | 841x594 | 821x574 |
| BLXDA0 | A0 | 1287x939 | 1189x841 | 1169x821 |
View the examples below and click here to request more information.

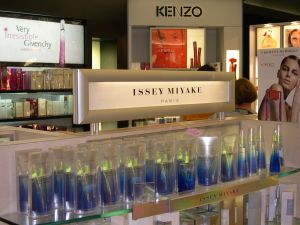

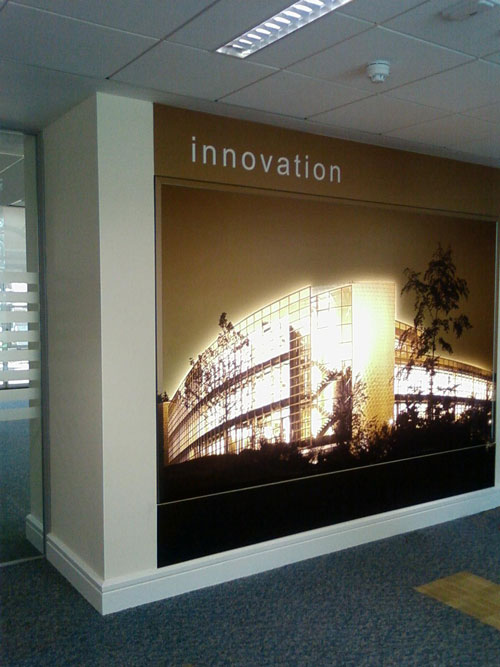

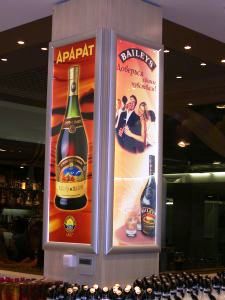

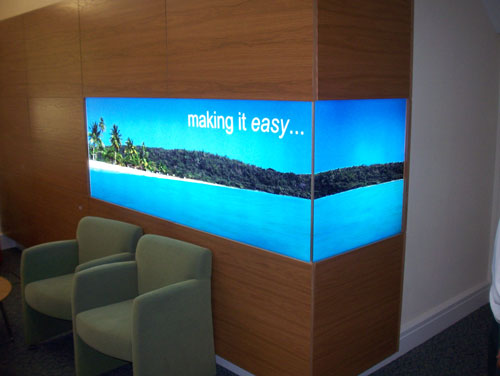

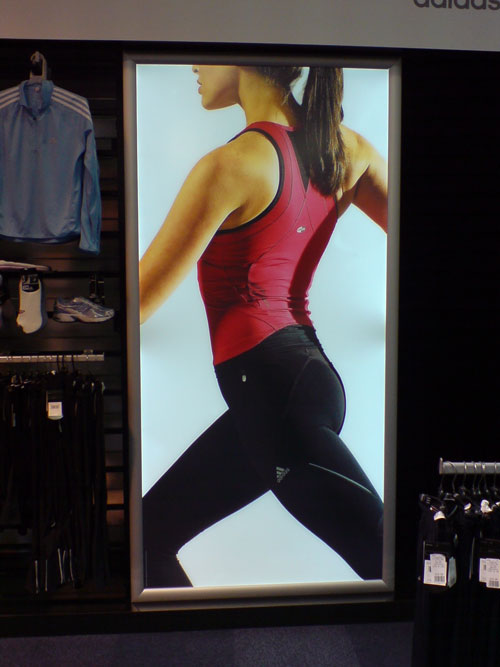

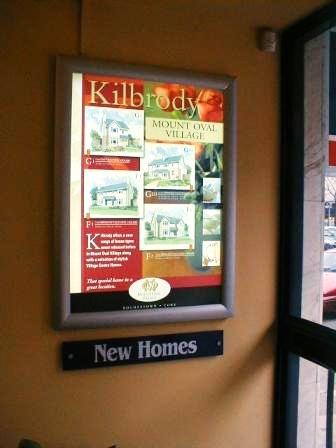

Examples
Click to enlarge
